Laserprobe 4500


Laserprobe

Laserprobe 4500 Scansystem

including software (DE / EN) “LaserProbe 4500” for 3D scanning of objects up to 100 mm high, all materials except transparent or reflective



1.998,00 €

(incl. 19% VAT)

Features

Overview

Laserprobe 4500 3D laser scanner system for almost all materials

This system is suitable for stationary operation and automated scanning of objects with the CNC milling machine.

Our “LaserProbe 4500” 3D laser scanner system is designed for non-contact 3D laser scanning of objects with a laser to create three-dimensional computer models and to create model files that are subsequently are suitable to be used or processed in a CNC milling machine system.

The 3D laser scanner system is designed so that it can be networked with any CNC machine, including servo machines, regardless of the type of control.

Of course, the basic configuration including the complete wiring can be used on all CNC machines from CNC-STEP.

The supplied scan software for the evaluation and filtering of the scan results, “Dorgonia”, is available in German and English, as well as the complete manual.

The instructions for the system can be viewed or downloaded in the lower “download column”!

Also available are the 3D scanner and the 3D laser scanner in the affordable starter kit from David.


DescriptionValue
to be scanned materialsall, exept transparent or reflective material
Raster-Scan for XYany
Field-Scan for XYany
Scanning depth, mm100 or any*
Average scanning speed, points / second4500
Average time required for an area of 100 x 100mm6-10 minutes
Basic distance, mm

Penetration depth, mm

Height from machine table, mm

Measurement deviation, mm

Resolution, mm

140
100
240
±0,1
0,03
Maximum working speed, dots / second10000
Lasertype3 mW, W 660 nm
protection classificationIP67
Workingtemperature, °?-10…+60
Time for continuous workunlimited
Total and final dimensions, mmFig.1
weight, g100

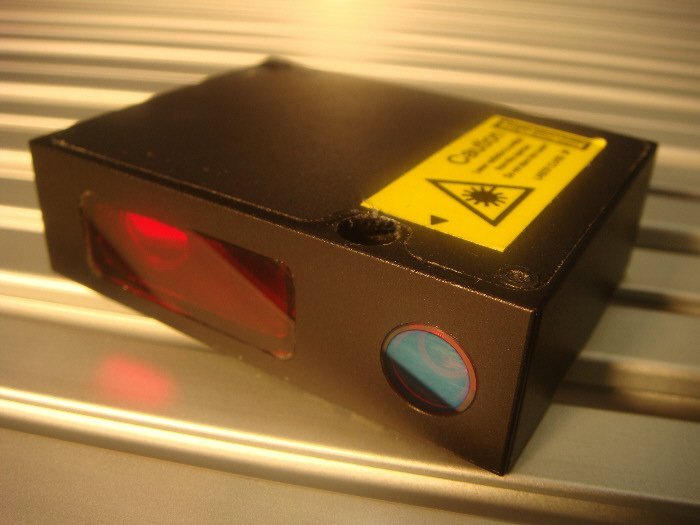

Working principle of the laser scanner:

The laser sensor of the laser scanning system is mounted on the motion system of the machine and attached. During the scanning process, the CNC system of the machine moves the laser sensor line by line in a distance defined by the customer in the software (from 0.01 mm) over the prototype of the object.

The laser sensor of the laser scanner measures the distance (Z-coordinate) to the object surface.

Data acquisition of the laser sensor and sensor movement are synchronized (XY coordinates), the result is sent to the PC via USB port.

Thus, the XYZ coordinates determine the layout for the laser scanned surface.

A digital prototype is created and saved as a point file, as well as a conventional STL format that can be used for further processing with CNC.

Filter:

There are various noise and smoothing filters for different materials available to positively influence the scan result.

Applications of the 3D laser scanner:

  • Prototyping
  • Reproduction
  • 3D scale changes
  • Production of accurately fitting orthopedic parts
  • Molds
  • Jeweler equipment
  • Orthopedic mechanics

and much more …

System Requirements:

  • Processor: not lower than Intel Pentium 4 2.0GHz
  • RAM: not less than 1024 MB (4096MB recommended).
  • Storage space: not less than 20 GB, NTFS file system is required.
  • Video card: ATI / NVidia and not less than 256MB video memory.
  • Operating system: Windows 2000 / Windows XP up to WIN7
  • Other: USB 2.0 is needed
